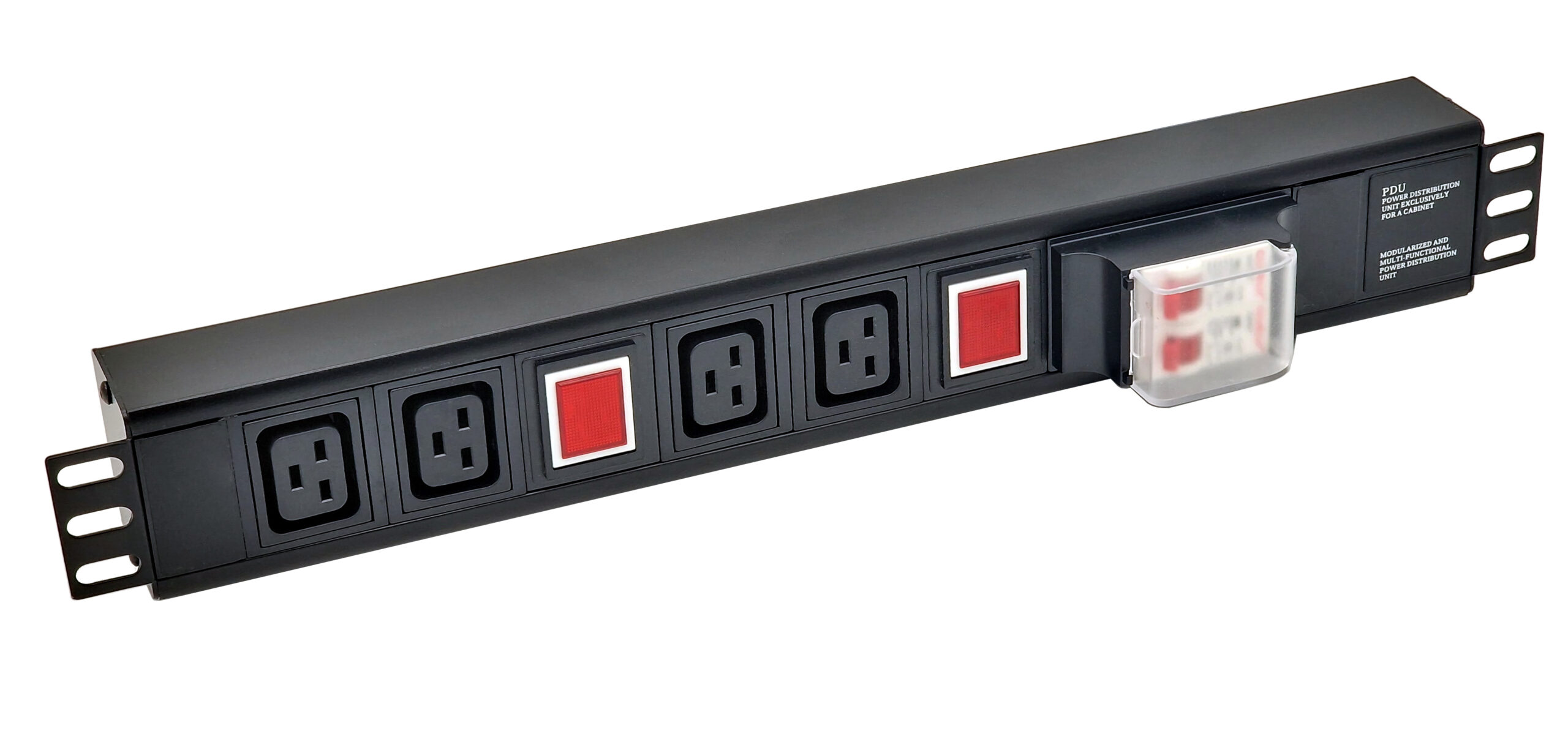

4 way C19 MCB PDU

Description 4-Way C19 MCB PDU   Key Features 1.5 U horizontal PDU with four IEC C19 output sockets, ideal for high-current server/cabinet installations. Split into two branch circuits, each protected by a covered 16 A MCB. Supplied with a 5-metre LSZH (Low Smoke Zero Halogen) 4.0 mm² 3-core lead to open end. Aluminium extrusion body, PVC socket fascias, 2 mm steel end-caps. External earth screw (6 mm) for safe and secure earthing. Compliance with RoHS, WEEE, CE & UKCA standards. Technical Specifications Parameter Specification Maximum Voltage 250 V MCB Ratings 230/400 V~, 50 Hz, C-curve 16 A, 6000 A short-circuit capability Lead Length 5 metres Lead Specification 4.0 mm² LSZH In-Box Contents 1× PDU unit, 1× set of cage nuts Part Code HC19/4/EN/MCB (4-way C19 PDU, 2 branch circuits, 16 A MCB each, 5 m LSZH lead) Why Choose This PDU? Designed for modern data-centre and network rack environments where multiple high-current devices must be powered reliably from a single horizontal footprint. The dual-branch circuit with individual MCBs gives extra safety and flexibility — you can isolate one branch while keeping the other live, reducing interruption risk. LSZH cable is suitable for offices and server rooms where fire-safety and smoke suppression are important considerations. Aluminium construction ensures durability, effective heat dissipation and a professional finish suitable for enterprise-grade infrastructure. Compliant with major UK/European safety standards, ensuring it meets legal and organisational safety requirements. Applications & Use-Cases In a 42U server rack: powering high-density servers, storage arrays, or rack-mounted power supplies that use IEC C19 connections. Ideal for office server rooms, network closets, broadcast installations, or any environment where multiple high-current devices need safe consolidated power. Particularly fitting when you want a minimal rack-height (1.5U) footprint to free space for other equipment. Ordering & Custom Options Standard Lead Time: Available to order now. Lead Options: Choose between standard 5-metre 4.0 mm² LSZH lead to open end (included) or 3-metre 4.0 mm² LSZH lead to 32A Commando plug ( £8.50) at point of order. Customisation: Please contact us at [email protected] if you require alternative lead length, plug types, or branding options. Pricing £175.00 for the standard configuration. Add lead upgrade at £8.50 if selecting the 3-metre Commando plug version. Delivery & Support Free delivery on orders over £100 (as per general site policy). Includes full technical datasheet (see download link on product page) for engineers and installers. Support available via phone 0800 852 1010 or email [email protected] — happy to assist with installation advice, compatibility questions or site-specific power planning. Compatibility & Installation Notes Ensure your rack power system supports IEC C19 female connections — this unit uses those standard sockets. Install into a standard 19-inch rack occupying 1.5 U of height horizontally. Use the external earth screw to connect to your rack’s earth bar (or building earthing system) for safety compliance. Keep adequate spacing around PDU for ventilation — although aluminium body helps, high heat loads should still be managed. Confirm that each branch circuit (via its own MCB) is within load specification to avoid nuisance trips and maintain safe operation. Why Buy From Us Established since 2004, Data Room Direct specialise in office power and data solutions. Wide range of compatible products — if you need more IEC C19 PDUs, bespoke racks, under-desk power modules or data cabling, we’ve got you covered. Our product pages include full technical specifications, download links, and visuals to assist in planning and procurement. UK-based support, free shipping thresholds, and a trusted supplier for enterprises.
