ACS37100LMATR-050B3 TMR Current Sensor Large Carrier -50A to 50A, 3.3V

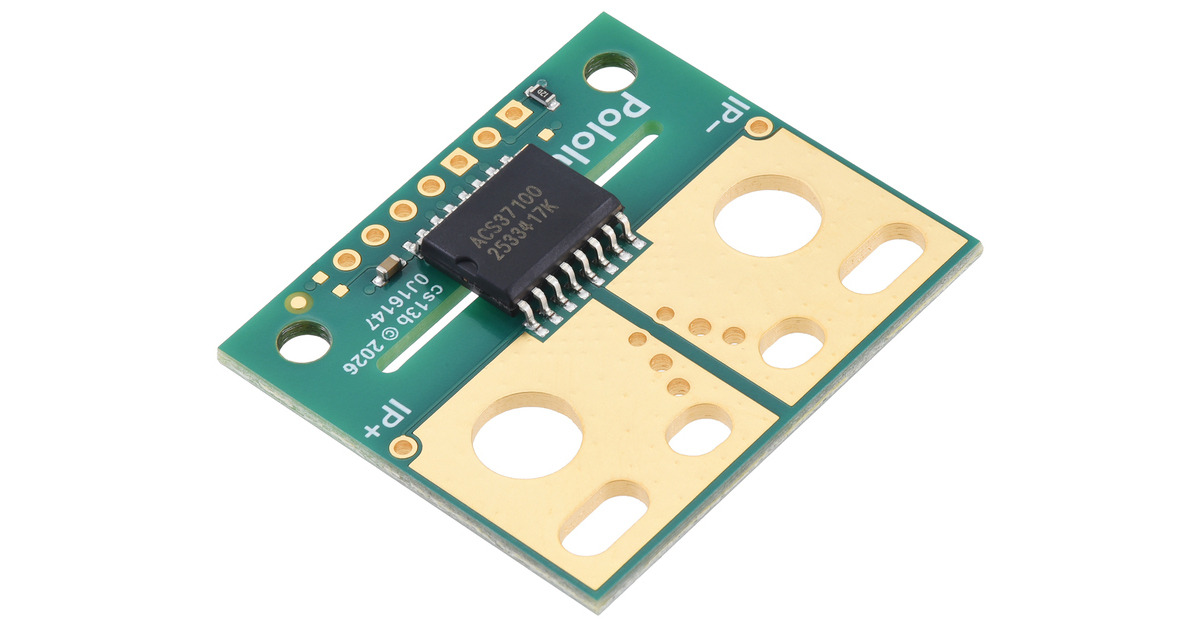

This is the large version of a simple carrier for Allegro’s ACS37100LMATR-050B3 TMR-based, electrically isolated current sensor that offers a high 10 MHz bandwidth with high accuracy, low noise, and typical response times of 50 ns. The typical primary current path resistance of the sensor IC is 1.2 mΩ. Part Suffix Range Supply Voltage Sensitivity Zero Point Size PCB layers 050B3 ±50 A (bidirectional) 3.0 V to 3.6 V 26.4 mV/A 1.65 V 1.4″×1.2″ 6
