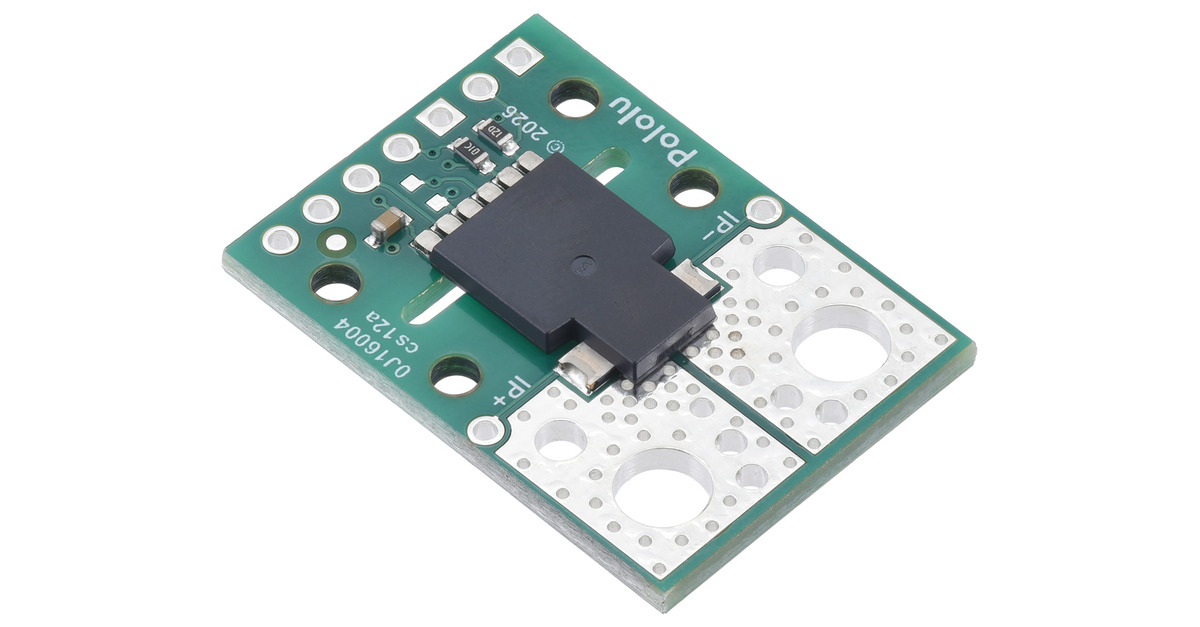

ACS37200LLXTR-100B5 Current Sensor Compact Carrier -100A to 100A, 5V

This is the compact version of a simple carrier for Allegro’s ACS37200LLXTR-100B5 Hall effect-based, electrically isolated current sensor that offers an extra-low-resistance (~0.05 mΩ) IC current path, a 150 kHz bandwidth with <4 µs response time, and an overcurrent fault output with a user-configurable threshold. Part Suffix Range Supply Voltage Sensitivity Zero Point Size PCB layers 100B5 ±100 A (bidirectional) 4.5 V to 5.5 V 20 mV/A 2.5 V 0.8″×1.1″ 2
