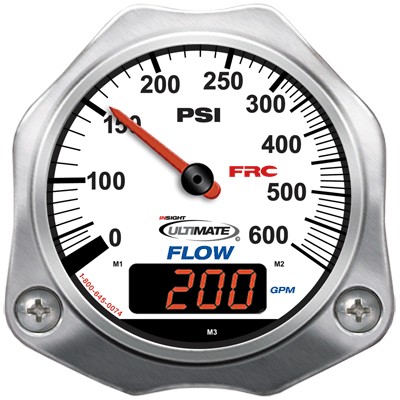

Description INSIGHT ULTIMATE Flowmeter and Pressure Indicators fpa400Data Sheet Pressure gets water to the fire, but it’s water flow that puts the fire out! Getting the right flow on the fire is critical. Forget using rule-of-thumb based on variables such as pressure readings, hose size, length, and friction loss. Flowmeters give an exact and immediate measure of the water being used. The Insight Ultimate is a flowmeter and pressure indicator that displays the flow rate and the pressure at the discharge. The INSIGHT ULTIMATE digital flowmeter and pressure indicator combines a digital LED flow display and a traditional style electronic pressure indicator into one practical display module. The digital flowmeter is a 4-digit LED display driven by a paddlewheel flow sensor. The pressure indicator is an electronically controlled analog display. A microprocessor controls the needle movement to provide an accurate and steady pressure display. Leakage and freeze-up problems common in mechanical pressure gauges are eliminated. Now available with backlighting! A new option for 2008. The pressure/flow indicator is able to communicate with other display modules over a datalink. This technology allows for remote displays, the display of flow for multiple discharges (summing), and the totalization of flow for multiple discharges (accumulation). Pressure information is from a pressure sensor and flow rate is provided by a paddlewheel type flow sensor, both are mounted in the discharge. This information is processed and shown on the digital display. STANDARD FEATURES Displays GPM and PSI Directly All Aluminum Housing Display Module Identification and Program Access Modes Datalink Interface – allows for remote displays and summing or accumulating of flow from all discharges Linearizer Feature – Multiple Flow Rate Calibration Points Pressure Scale Expands Between 100 and 250 PSI Safeflow Feature – High and Low Flow Warnings NFPA Color Coded Bezel (Optional) External Totalizing Button (Optional) Flow Conditioner (Optional) Backlighting (Optional) Paddlewheel Style Flow Sensor Simple Installation SPECIFICATIONS Supply Voltage: 9-30 VDC Supply Current: 1.0 Amp Display Dimensions: 4.25″ wide, 4.25″ high, 3.4″ deep 3.75″ panel cutout required Other Options DFAoption-AL1 Flow sensor mount, alum boss DFAoption-AL2 Flow sensor mount, alum boss flow cond. DFAoption-C00 Flowmeter, Insight, bezel, chrome, standard DFAoption-C01 Flowmeter, Insight, bezel, brown DFAoption-C02 Flowmeter, Insight, bezel, red DFAoption-C03 Flowmeter, Insight, bezel, orange DFAoption-C04 Flowmeter, Insight, bezel, yellow DFAoption-C05 Flowmeter, Insight, bezel, green DFAoption-C06 Flowmeter, Insight, bezel, blue DFAoption-C07 Flowmeter, Insight, bezel, purple DFAoption-C08 Flowmeter, Insight, bezel, grey DFAoption-C09 Flowmeter, Insight, bezel, white DFAoption-C10 Flowmeter, Insight, bezel, black DFAoption-C11 Flowmeter, Insight, bezel, burgundy DFAoption-C12 Flowmeter, Insight, bezel, silver DFAoption-HL1 Flow sensor mount, Hale spacer adapter DFAoption-K6 Flow sensor mount, GF series to DFA400 retrofit DFAoption-K7 Flow sensor mount, DF3000 to DFA400 retrofit DFAoption-PT1 Flow sensor mount, pipe tee DFAoption-PT2 Flow sensor mount, pipe tee, flow cond. DFAoption-SC1 Flow sensor mount, saddle clamp, standard DFAoption-SC2 Flow sensor mount, saddle clamp, flow cond. DFAoption-SC3 Flow sensor mount, saddle clamp, CL1 neck down DFAoption-SS1 Flow sensor mount, SS boss DFAoption-SS2 Flow sensor mount, SS boss, flow cond. DFAoption-ST1 Flow sensor mount, steel boss DFAoption-ST2 Flow sensor mount, steel boss, flow cond. DFAoption-WA1 Flow sensor mount, Waterous adapter
