AUTOFOAM CS Electronic Controlled Proportioning FSB015

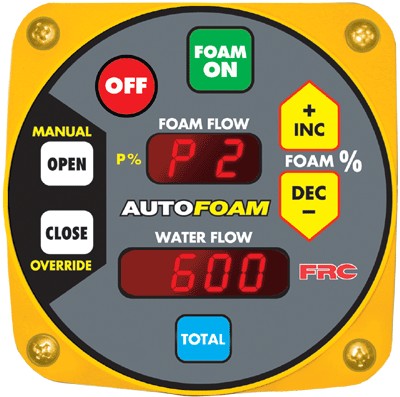

Description   AUTOFOAM SC Electronic Controlled Proportioning The AutoFoam SC is a high volume automatic foam proportioner. It will correctly mix Class B foam concentrate with water at discharge flow rates up to 3000 GPM. This around-the-pump foam proportioning system will automatically maintain a selected foam percent mixture regardless of discharge water flow fluctuations. Around-the-pump proportioning systems operate with an eductor installed between the water pump intake and pump discharge. A small flow of water from the pump discharge passes through the eductor and creates a vacuum that draws foam concentrate into the eductor and ejects it into the intake side of the pump. The AutoFoam SC is microprocessor controlled and easy to use. Power the system with the push of a button, two buttons are used to select the foam proportioning percent, three multifunction displays provide flow rate and operational information.  The upper flow display shows the foam concentrate flow rate. The lower display shows the discharge water flow rate. The message display shows the mode of operation and the selected percent of foam concentrate. The operator can override automatic control by using the manual override buttons. In manual mode the operator is in control of opening or closing the foam proportioning valve to control how much foam concentrate flows into solution. Options FSBoption-AL1      Flow sensor mount, alum boss, option FSBoption-AL2      Flow sensor mount, alum boss flow cond. FSBoption-BSP1    Flow sensor mount, foam valve, BSP FSBoption-DT1      Flow sensor mount, no-weld DT short 6-8in (requires F1) FSBoption-F2         Flow sensor w/ITT conn. Option FSBoption-HL1      Flow sensor mount, Hale flange FSBoption-NW1    Flow sensor mount, no-weld FSBoption-NW2    Flow sensor mount, no-weld kit, flow cond. FSBoption-PT1      Flow sensor mount, pipe tee FSBoption-PT2      Flow sensor mount, pipe tee, flow cond. FSBoption-RC1     Flow sensor mount, retaining cap only FSBoption-RS1      Foam system, AUTOFOAM SC, Remote enable FSBoption-SC1      Flow sensor mount, saddle clamp, standard FSBoption-SC2      Flow sensor mount, saddle clamp, flow cond. FSBoption-SS1      Flow sensor mount, SS boss FSBoption-SS2      Flow sensor mount, SS boss, flow cond. FSBoption-ST1      Flow sensor mount, steel boss FSBoption-ST2      Flow sensor mount, steel boss, flow cond. FSBoption-WA1    Flow sensor mount, Waterous flange FSBoption-WA2    Flow sensor mount, Waterous flange, flow cond.
