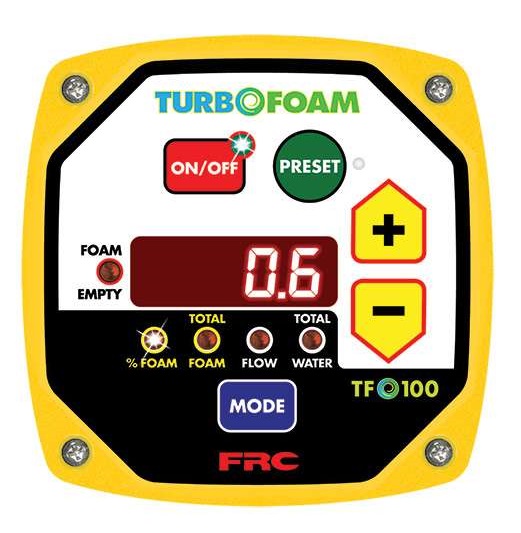

Description TURBOFOAM w/Single Tank LED Display turbofoam-manual PDF The TurboFoam TFC100 is an automatic regulating direct injection foam proportioning system. It is for use with Class A or Class B foam concentrates. The system features an electric pump that injects foam concentrate directly into the discharge water stream. The TurboFoam TFC100 is for use with a single foam tank. A single 4-digit display and four LED indicators provide system information to the operator. A mode button is used to toggle the display to view foam percent, water flow, or flow totaling. Basic System The simplest system, this control is for use with a single foam tank. A single 4-digit display and four LED indicators provide system information to the operator. A mode button is used to toggle the display to view foam percent, water flow, or flow totaling. STANDARD FEATURES 1.6 gpm (6.0 LPM) Pump Foam Innovations The foam pump assembly includes the pump and electric motor along with the foam pump control box. The calibration bypass valve and a pressure relief valve are included as part of this assembly. Triplex Plunger Pump Viton seals Die cast bodies Forged brass heads Solid ceramic plungers Oil level sight glass Oil reservoir vented cap/dip stick Oversized roller bearings Anodized cast cooling fins Foam Pump Control Motor power input terminals Motor speed control circuits RPM sensor input System interface Sealed against water infiltration Electric Motor Designed for use in wet environment Moisture-resistant interior components Durable white epoxy coating Endshield drains RPM sensor Stainless steel shaft Built-in cooling fan (3/4 & 1 HP motors only) Pressure Relief Valve Factory set for 400 psi (28 BAR) Adjustable when required Calibration Bypass Valve Calibrated using operational concentrate Concentrate is returned to system, no waste TurboFoam Interfaces with TankVision and Insight Ultimate via Datalink. Provides accurate monitoring of foam tank volume Displays low foam tank warning Supplies tank empty information Displays time remaining for operation at current concentrate usage Capable of dual tank monitoring Single Tank Systems TFC100/TFC200 TFC100/TFC200/TFC300 with Electric Flush Valve Specifications Pump Size gpm (LPM) 1.6 (6.0) Motor Size (horsepower) 1/2 DC Voltage 12 or 24 Maximum Current (Amps) 36 or 18 Maximum Operating Pressure psi (BAR) 400 (28) System Capacity Foam Concentration TFC16 Max. Water Flow gpm (LPM) 0.2% 800 (3028) 0.5% 320 (1211) 1.0% 160 (606) 3.0% 53 (202) 6.0% 27 (101) Attack Capability Class A Foam Concentration Maximum Coverage per Critical Application Rate (Iowa Formula) Foam Concentration TFC16 Max. Water Flow cu. ft (cu. m) 0.2% 80,000 (2265) 0.5% 32000 (906) 1.0% 16000 (453) Class B Foam Concentration Hydrocarbon @ 0.10 gpm/sq.ft (0.37854 LPM/sq.m) Foam Concentration TFC16 sq. ft (sq. m) 1.0% 1600 (149) 3.0% 530 (49) 6.0% 270 (25) Polar Solvent @ 0.20 gpm/sq.ft (0.757 LPM/sq.m) 3.0% 265 (25) 6.0% 135 (13) MODELS TURBOFOAM w/Single Tank LED Display Part No Long Description TFC116-025 TURBOFOAM 100, 1.6 GPM, 2.5″ disch, 12 VDC TFC116-030 TURBOFOAM 100, 1.6 GPM, 3.0″ disch, 12 VDC TFC116-040 TURBOFOAM 100, 1.6 GPM, 4.0″ disch, 12 VDC TFC116-050 TURBOFOAM 100, 1.6 GPM, 5.0″ disch, 12 VDC TURBOFOAM Options TFCoption-EF0 Electric Flush Valve/Panel Button, TFC100/200 TFCoption-FL1 Check Valve, 1″, TFC100/200 TFCoption-FS2 Tank Float Switch, Side Mnt TFCoption-FW0 Check Valve & Strainer, Flush Line, 1/2″, TFC100/200 TFCoption-RS0 TURBOFOAM, Remote ON/OFF switch TFCoption-INFO Information Placards Options listed may not be available for all models.
