Elkhart, APEX Valve Controllers and cables***

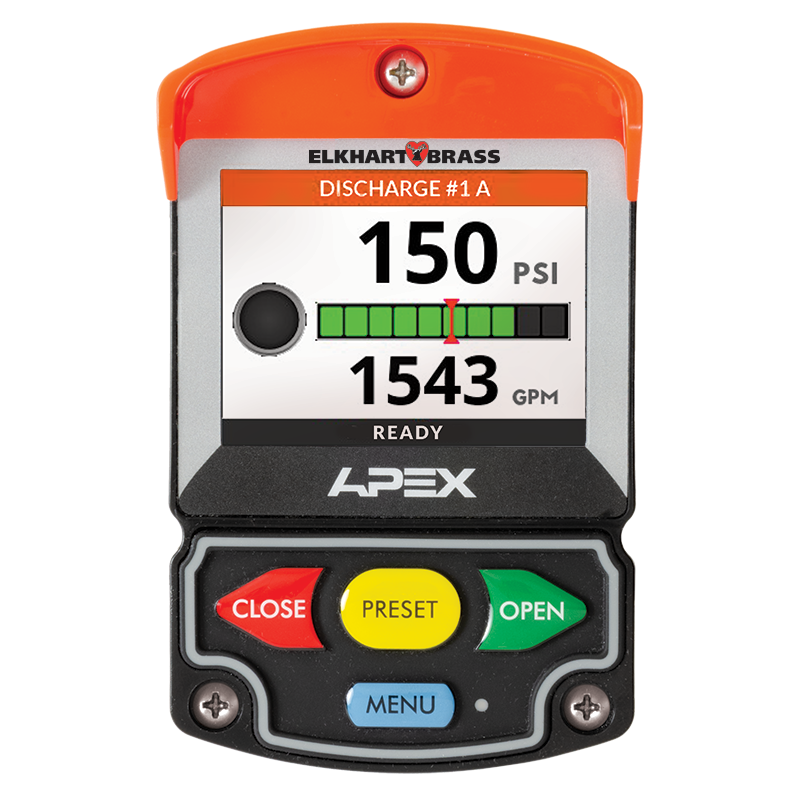

Description Apex Valve Controller Display Spec Sheet1 Apex spec sheet Spec sheetAPEX Brochure V2.0 Manual Apex controllerAPEX_Valve_Controller manual Ultimate Solutions and Ultimate Control Combine customization capabilities with space saving design, add tactile keypad buttons and large, easy-to-read graphics and the result is an innovative new valve controller. APEX™ provides great benefits to OEMs as well as end users! The design and versatility of the APEX Valve allow an OEM to save valuable pump panel space and adapt the controller to any application, while offering only one version of actuator. It takes the guesswork out of the ordering process. Operators will appreciate the large screen with high resolution graphics, while additional features including the adjustable “Target Pressure” indicator and daytime/nighttime screen modes deliver functionality never seen before in a valve controller. The APEX-S offers open/close and preset functions in a compact controller with 10-segment position indicating LEDs instead of the LCD screen. Key Features Oversized buttons for easy gloved-hand operation Visors available in NFPA color options Customizable to match the color and name of discharge. User programmable preset for one-touch valve positioning 10-segment position indicating LEDs Select from a preloaded menu or type in your own description Programmable pressure target indicator Large crystal clear sunlight readable display MENU button for setup, calibration and diagnostics Large, impact-resistant 3.5″ (89 mm) LCD screen for unmatched durability Pressure readout in analog gauge or numeric style readout Large, impact-resistant 3.5″ (89 mm) LCD screen for unmatched durability Pressure readout in analog gauge or numeric style readout Critical data in large, easy-to-read format Visor available in NFPA color options Customizable to match the color and name of discharge User programmable preset for one-touch valve positioning Oversized buttons for easy gloved-hand operation Space-saving design at only 3.75″ (95 mm) wide Compact Valve Control Valve Control Valve Control with Pressure Valve Control with Pressure and Flow SYSTEM OVERVIEW Choose Your APEX Note: Diagram represents single APEX controller to single valve configuration. For multiple controllers and network options, please contact Elkhart Brass Customer Service. Select an Optional Harness Extension harness available in 2′ (.6 m), 10′ (3 m), 15′ (4.5 m), 20′ (6 m), 30′ (9 m) and 40′ (12 m) Choose Valve and Actuator Unibody valve shown with E14X actuator Add Sensors as Required Flow and pressure sensors
