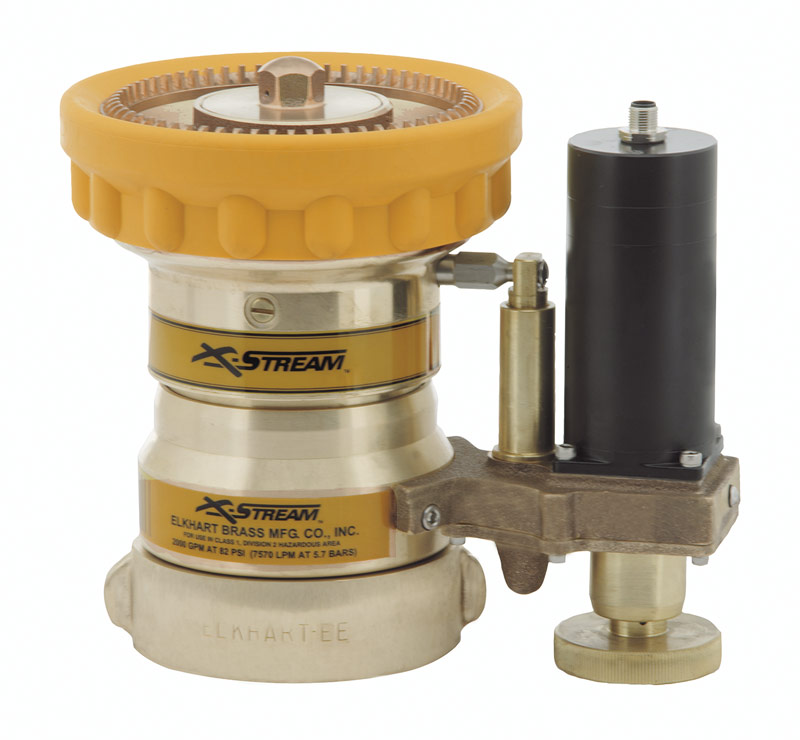

Description PDF Data Sheet X-Stream PDF Data Sheet X-Stream Nozzles PDF Data Sheet Elkhart xstream_ASM-2000BE Flush Inlet Built to perform, the X-Stream® Series automatic nozzles are designed to self-adjust based on variable or reduced pressure and flow to maintain an effective stream with maximum reach. Manual models feature large handles for easy stream pattern adjustment. 12VDC electric versions include sealed connectors and motors along with a manual override. They have several global certifications and approvals including FM, ATEX, and IECEx. Special models are designed for use in hazardous locations and for gas mitigation applications. Flow rates: 350 – 2000 gpm (1330-7550 LPM) Calibrated to operate at lower inlet pressures. Key Features Flow rates: 350 – 2000 gpm (1330-7550 LPM) Calibrated to operate at lower inlet pressures of 75 or 80 psi (5 or 5.5 BAR) Straight stream, narrow fog (30°) or wide fog (90°) Precision cut metal teeth for exceptional fog pattern Durable, lightweight aluminum construction – OR – Brass construction for corrosive and non-corrosive environment applications with some models even having an electroless nickel-plated coating for extra protection Some models are made of hard coated aluminum with hard anodized finish Aluminum Models Model SM-1000 Flow range of 350-1000 gpm @ 75 psi (1330-3800 LPM @ 5 BAR) Large handles for manual stream pattern adjustment 2.5″ Inlet Model SM-1250 Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR) Large handles for manual stream pattern adjustment 2.5″ Inlet Model SM-2000 Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR) Large handles for manual stream pattern adjustment 3.5″ Inlet Model SM-1000E (D) Flow range of 350-1000 gpm @ 75 psi (1330-3800 LPM @ 5 BAR) Stream pattern remotely controlled via robust electronic motor design 2.5″ Inlet Deutsch or SAE wiring connections available Model SM-1250E (D) Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR) Stream pattern remotely controlled via robust electronic motor design 2.5″ Inlet Deutsch or SAE wiring connections available Model SM-1500E (D) Flow range of 350-1500 gpm @ 75 psi (1330-5700 LPM @ 5 BAR) Stream pattern remotely controlled via robust electronic motor design 3.5″ Inlet Deutsch or SAE wiring connections available Model SM-2000E (D) Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR) Stream pattern remotely controlled via robust electronic motor design 3.5″ Inlet Deutsch or SAE wiring connections available Brass Models Model SM-1250B Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR) Large handles for manual stream pattern adjustment 2.5″ or 3.5″ inlet FM Approved Model SM-1250BE Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR) Stream pattern remotely controlled via robust electronic motor design 2.5″ inlet or 3.5″ inlet Model SM-1250HB Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR) Stream pattern remotely controlled via robust hydraulic actuator 2.5″ inlet or 3.5″ inlet Model SM-2000B Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR) Large handles for manual stream pattern adjustment 3.5″ inlet FM Approved Model SM-2000BE Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR) Stream pattern remotely controlled via robust electronic motor design 3.5″ inlet Model SM-2000HB Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR) Stream pattern remotely controlled via robust hydraulic actuator 3.5″ inlet Approved for Hazardous Location Use FM Approved for Class I Div 2 hazardous location rated or ATEX certified for Zone 1, ATEX Zone 2, ATEX Zone 21, ATEX Zone 22 IECEx certified Zone 1, IECEx Zone 2, IECEx Zone 21, IECEx Zone 22 Model SM-1250BE-HL Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR) Stream pattern remotely controlled via robust electronic motor design 3.5″ inlet OR Model SM-2000BE-HL Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR) Stream pattern remotely controlled via robust electronic motor design 3.5″ inlet OR Gas Mitigation Master Stream Nozzles Designed for with a wide 120° fog pattern for gas mitigation applications Model SM-1250BE-HLGM Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR) Stream pattern remotely controlled via robust electronic motor design 3.5″ inlet SM-2000BE-HLGM Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR) Stream pattern remotely controlled via robust electronic motor design 3.5″ inlet
