Water Powered Monitor Oscillator, WPO-2000,(NO MONITOR INCLUDED)***

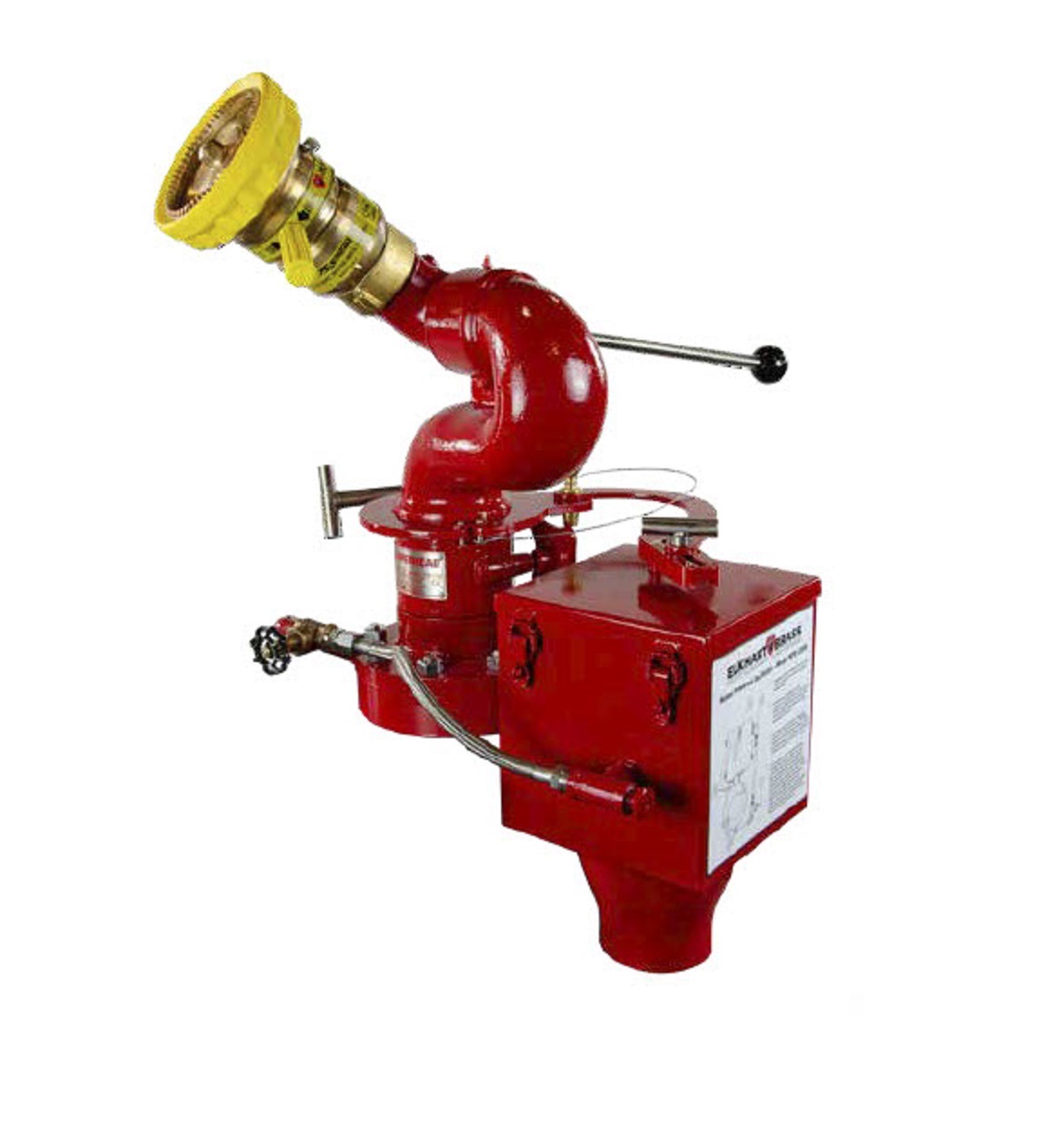

Description WPO-2000_datasheet_rev10-19 SF_WaterPoweredMonitorOscillator_Brochure_09-13-18 The WPO-2000 is designed to provide up to 30°/sec oscillation speed when installed between a monitor flange and supply piping flange or control valve flange. The WPO-2000 is the most versatile and reliable water powered monitor oscillator system available to the fire protection industry today. The WPO-2000 system is FM approved, has a US patent pending and is suitable for installation in corrosive and non-corrosive environments. Features: • Maintenance free waterway • Modular oscillator design enables compatibility with several types of monitors • 316 Stainless steel construction provides outstanding corrosion resistance for use in corrosive environments • Easily accessible external controls enable speed and travel range adjustments while system is in operation • Double reduction oil bath gearbox ensures reliability and extended life for heavy use • Manual override feature enables manual control at any time • 15° to 120° arc of oscillation range for wide coverage area • 10 psi (0.69 bar) minimum & 200 psi (13.8 bar) maximum operating pressure • Supports wide range of monitors with up to 2000 GPM (7570 LPM) flow rates • Compact size enables ease of installation • Can be tested with a garden hose without flowing monitor   2 options: 4″-150#FFw/5.25″ 0 clamp                316SS&85BR               PN#02000001 4″-150#FFw/6.5″ 0 clamp                  316SS&85BR               PN#02000002
