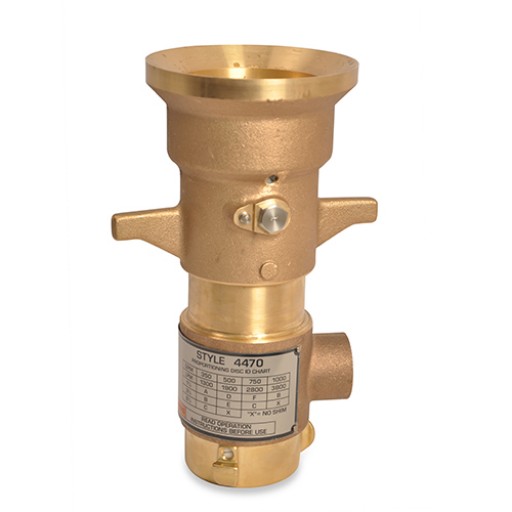

AkroFoam Master Stream 2 1/2 NH Nozzle with Pickup Tube 4470***

Description Product_Sheet_4470 The Akrofoam foam nozzles are self-educting master stream nozzles designed for educting foam at flow rates up to 1000 gpm (4800 lpm). Features These foam nozzles have the following features: – Rugged/Corrosion Resistant Brass Construction – Factory set at 500 gpm (1900 lpm) and field changeable to 350,750, or 1000 gpm (1325,2900, or 3800 lpm) – Optional Foam Shutoff Valve, Drum Seal Kit & Quick Connect – Metering capability of 1%, 3%, & 6% for 350 & 500 GPM, and 1% & 3% for 750 & 1000 gpm. Specifications Style 4470 Warranty Weight 25 lbs (11.3 kg) Type Foam Material Brass Brand AkroFoam Length 12 1/2″ (318 mm) Width 6″ (152 mm) Height 9 1/8″ (232 mm) Inlet 2 1/2” (65 mm) Flow (GPM) 350-500-750-1000 Flow (LPM) 1300-1900-2800-3800
