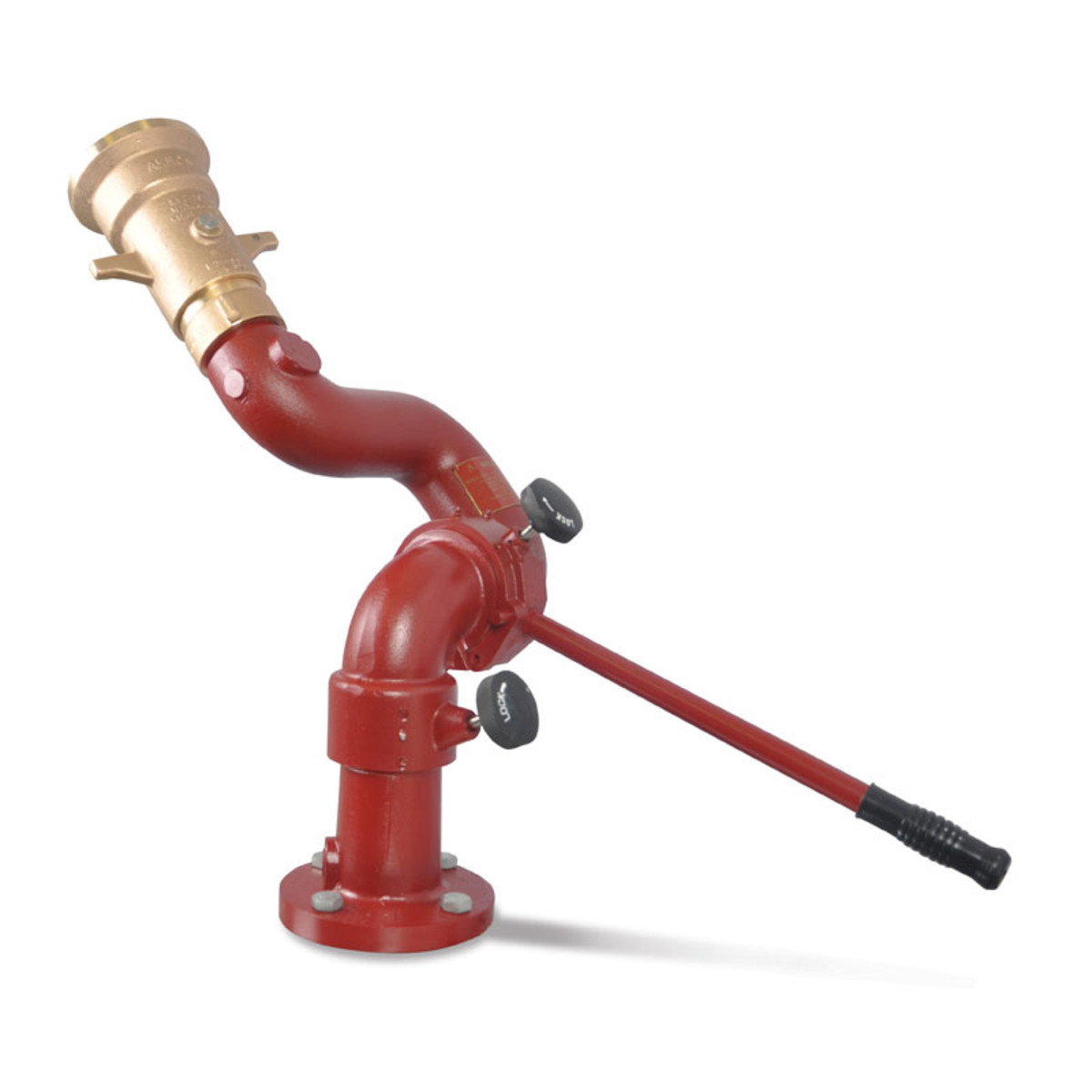

Description Product data sheet 3526 Omega Akron Omega Single Waterway Monitors provide a simple tiller bar control and manual friction brake operation. The full 3″ waterway delivers efficient flows up to 1250gpm. Good for water or foam delivery Features of the Omega Monitor – Full 3” waterway – Brass construction – Cast-in turning vanes for more efficient flow – 360° horizontal and 150° vertical travel – Elevation 90° above to 60° below horizontal Single waterway brass monitor with friction loss not to exceed 10 psi at 800 gpm. Monitor to be all brass construction with 3″ waterway and 2 1/2″ male discharge. The vertical travel lock shall incorporate a friction lock within the swivel joint. All elbows shall have cast-in turning vanes. Monitor shall have a vertical travel of 150° and horizontal travel of 360° Specifications Style: 3526 Certification(s) Weight: 72 lbs (32.7 kg) Type: Industrial Material: Brass Brand: Omega Width: 11 1/2” (292 mm) Height: 17” (432 mm) Depth: 32 3/4” (Less nozzle) (832 mm) Flange: 3″ Inlet: 2 1/2”, 3” or 4” FL (65, 75 or 100 mm) Outlet: 2 1/2” (65 mm) Flow: (GPM) 1250 Flow: (LPM) 4800
