AccuMax Class B Foam – Single-Point Injection

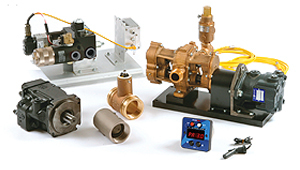

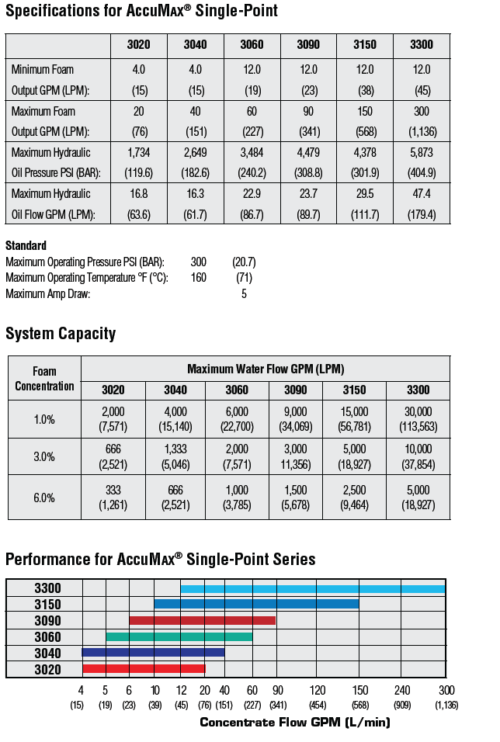

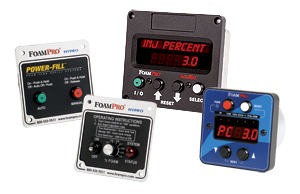

Description AccuMax Class B Foam – Single-Point Injection The AccuMax Single-Point series is available in six models with the main difference being capacity (20, 40, 60, 90, 150 and 300 gpm). All are hydraulically-driven and incorporate an Edwards rotary gear pump. Treats up to: 30,000 gpm @ 1.0%; 10,000 gpm @ 3.0%; 5,000 gpm @ 6.0%. The AccuMax Single-Point Injection series is available in six models with the main difference being capacity. All are hydraulically-driven and incorporate an Edwards rotary gear pump. System components include a microprocessor control/display unit, instruction placard, hydraulic control block, pump and motor assembly, load-sensing hydraulic pump, filters, strainer, foam injection check valve, complete shielded cable set and RFI/EMI suppression kit. Other features include: •Provides fully automatic foam proportioning, regardless of changes in flow or pressure •Provides discharge side injection: no foam goes through the fire pump •Convenient, push-button operation makes it the easiest system to use •No in-line restrictions •Delivers unmatched accuracy over the widest range of flows •Installs easily in new or existing apparatus •Leads the industry with proven reliability •Achieves full pump capacity with all known Class B concentrates Control module features: •Ultra-bright LED digital readout •Injection percentage from 0.1% to 10.0% •Displays separate totals for each foam concentrate •Low concentrate warning •Water flow rate •Total water used •Percent of foam concentrate •Total concentrate used Options available: •MultiFlo •Remote Start/Stop •Advanced Feature Controller
