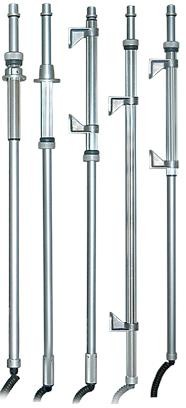

EVOLUTION II Telescopic Pole Mounts FCA510, FCA512, FCA530, FCA540, FCA542***

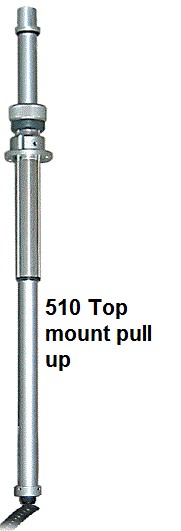

Description Spec Sheet FCA510      Evolution LED PDF EVOLUTION LED Top Mount Pull/Up Poles 510 The Top Mount Pull-Up pole is sometimes called a Thru-the-Deck Top Raise pole. It is excelent for mounting above the pump or non-weatherproof equipment compartments. The pole is raised from the top by pulling up from above the mounting flange. When the pole is in the down position the inner (extension) tube will be inside the compartment. A square flange (model 510C) and a 3″ square flange (model 510E) for mounting in a 3″ extrusion are available. Note: The mounting flange is not weatherproof and may seep water, for a weatherproof flange on a top mount telescopic pole refer to the 512 Thru-the-Roof series poles. EVOLUTION LED Thru Cab Roof Poles 512 The Thru-the-Roof Push-Up pole is designed with a no-drip flange to mount thruogh the roof of a weatherproof compartment. The pole is raised from the bottom by pushing it up with the knurled handle. The driver or crew can position the light without leaving the cab. EVOLUTION LED Side Mount Push/Up Poles 530 The Side Mount Push-Up pole has a outer tube that qualifies as a NFPA compliant handrail. This grab-handle is grooved to provide a secure grip even when wearing gloves. The standard outer tube is 20″ long. The pole is raised from the bottom by pushing it up with the knurled handle. EVOLUTION LED Side Mount Pull/Up Poles 540 The Side Mount Pull-Up pole has a outer tube that qualifies as a NFPA compliant handrail. This grab-handle is grooved to provide a secure grip even when wearing gloves. The outer tube is the full length of the pole and it has an internal brake that slows the extension pole during lowering. The pole is raised from the top by pulling up from above the safety twist lock. EVOLUTION LED Side Mount Pull/Up Short Outer Pole 542 The Side Mount Pull-Up pole has a outer tube that qualifies as a NFPA compliant handrail. This grab-handle is grooved to provide a secure grip even when wearing gloves. The standard outer tube is 20″ long. The pole is raised from the top by pulling up from above the safety twist lock.
