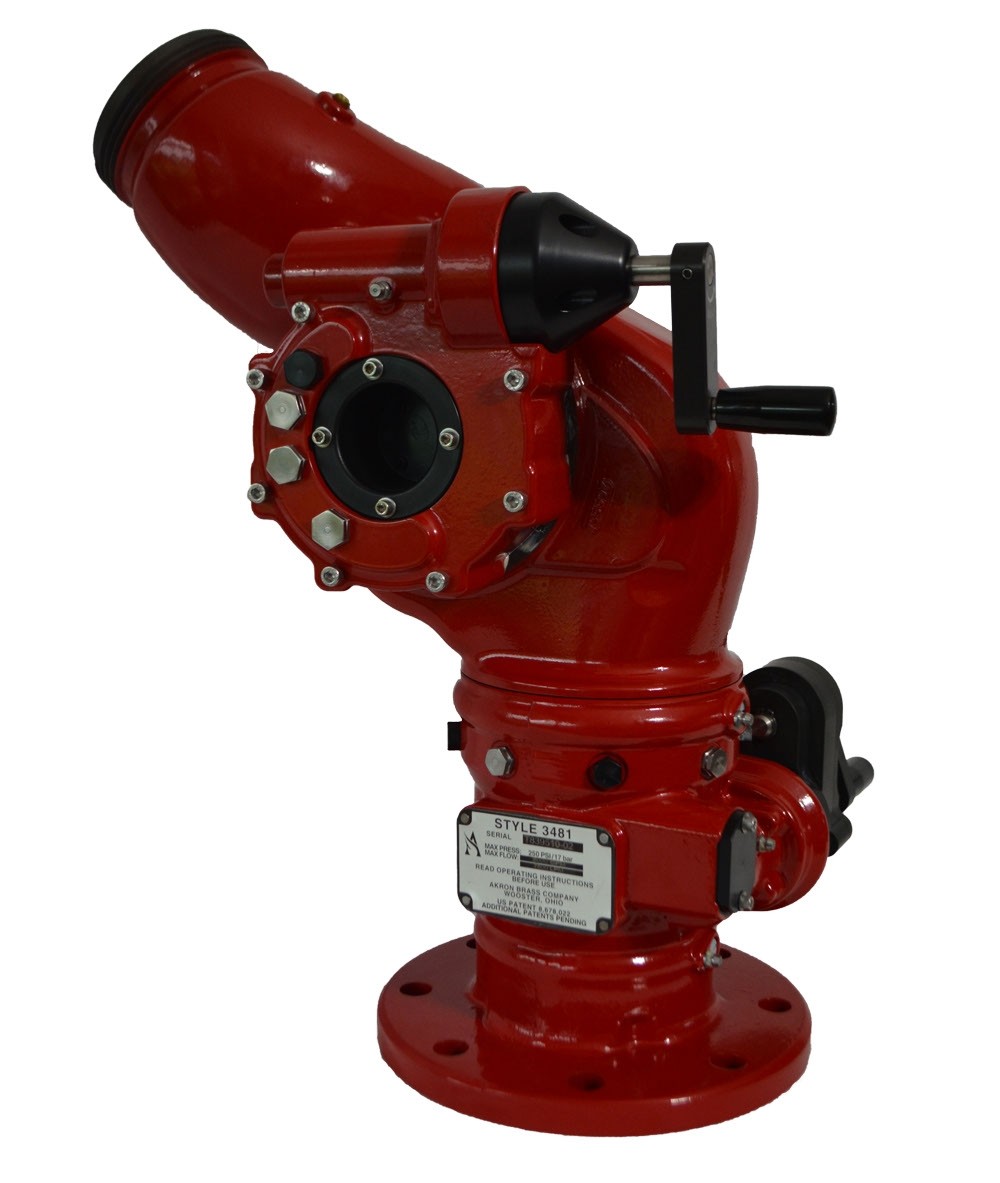

Description StreamMaster II Manual Fire Monitor System 2000 Product_Sheet_3481 The Style 3481 StreamMaster™ II manual water cannon with its multiple patent pending design, provides efficient flows up to 2000 GPM (7600 LPM). These firefighting monitors have a unique waterway design that provide balanced forces on the outlet and reduced friction for the stream resulting in exceptional fire suppression performance over a wide range of flows in a compact configuration. “Master Stream 5170 Nozzle not Included” but can be added to ordered The 2000 gpm rated monitor is to be a manually operated single waterway monitor constructed of lightweight Pyrolite. The monitor shall have a 4” (100 mm), 150 lbs. flanged inlet and 3-1/2” (89 mm) NH outlet. The monitor shall have cast-in turning vanes in each elbow. The monitor shall have permanently mounted handwheels for both horizontal and vertical rotation. The monitor is not to exceed 17-1/2” (446 mm) high and 10-3/4” (273 mm) wide. The vertical travel shall be from 45° below to 90° above horizontal with adjustable stops at -15° and 45°. The horizontal rotation shall be 355° with physical stops at ±45°, ±90°, ±135° and at ±157°. Compact industry-leading operating envelope (10.5″, 267 mm) Lightweight Pyrolite construction Rotation range 355° Elevation range 90°, – 45° Style 3481 Warranty Weight 33.3 (15.1 kg) Material Pyrolite Brand StreamMaster Width 10 1/2” (267 mm) Height 17 1/2” (446 mm) Inlet 4″ 150 lb. flange (Optional 3″ flange) (DN100 PN16 flange) Outlet 3 1/2” Male (Optional 2 1/2″ Male) (89 mm (Optional 64mm)) Flow (GPM) 2000 Flow (LPM) 5170 Stream Master Designed for flows from 500 to 2000 gpm (1900-7600 lpm) – at an operating pressure of 80 psi (5.5 bar) – Pyrolite – Manual Pattern Control – 500-2000 gpm (1900-7600 lpm) flow – 500-1500 gpm (1900-5700 lpm) Optional flow – 3 1/2″ (89 mm) Inlet (NH OR NPSH ONLY) – Fixed Teeth – 9 1/8″ (232 mm) long – 15 -1/4 lbs. (7.0 kg)
