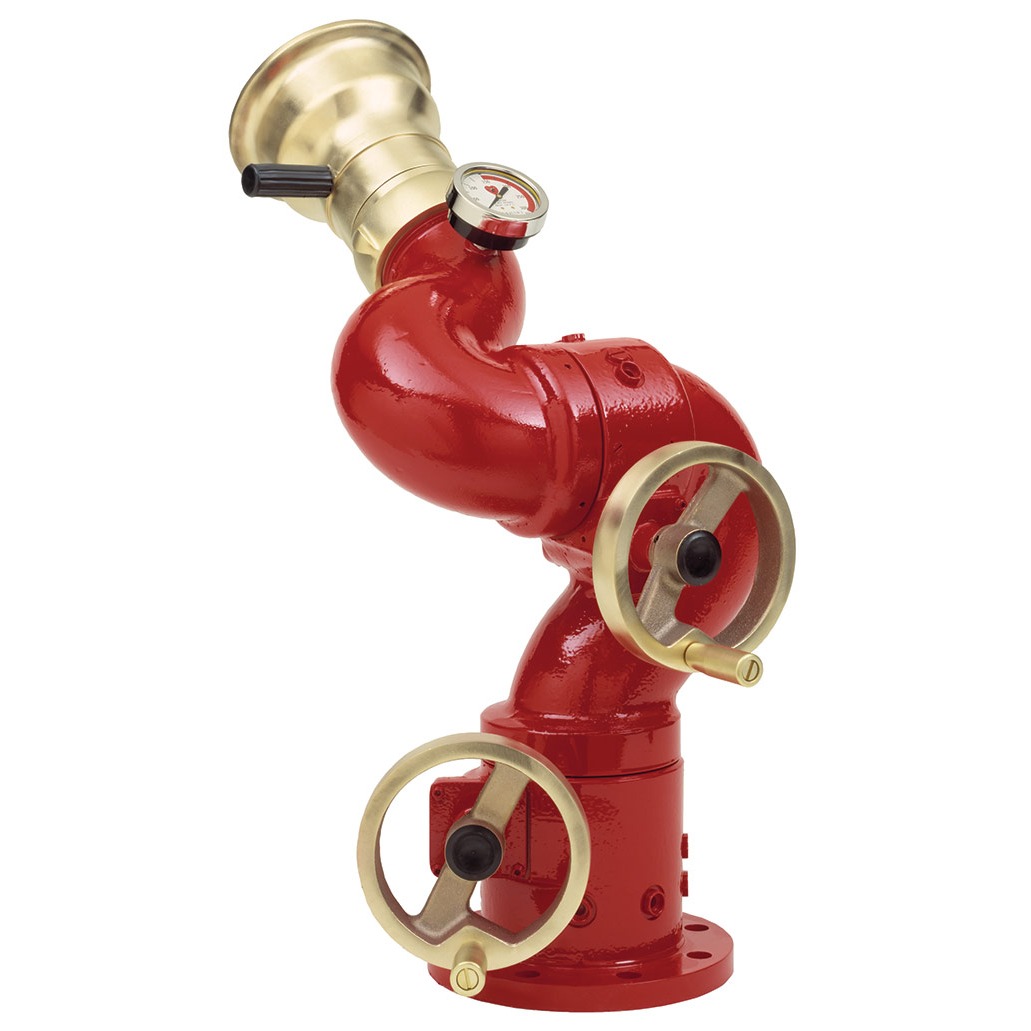

Description Spit-Fire-Dimensional Spitfire 8394-121 2023-EB-Full-LineCatalog-INDUSTRIAL_V2 The Elkhart Brass manual Spitfire® monitors are designed to provide up to 360° horizontal rotation with dual handwheel or tiller bar control mechanism options. The Spitfire manual monitor is FM Approved to the current edition of FM1421 standard and suitable for corrosive and non-corrosive environment applications. Models: 8394-02 Handwheel option PN# 08394021 8394-121 Tiller Bar PN# 08394121 Key Features 2000 gpm (7550 LPM) maximum 200 psi (14 BAR) maximum operating pressure -45° to 90° (135°) vertical travel 360° continuous horizontal travel 4″ waterway with cast-in vane to optimize stream reach and performance 4″ 150# Flange Brass Construction Easy to operate tiller bar or dual handwheel control options FM Approved for use with Elkhart Brass WPO-2000™ enables automation of the horizontal oscillation without the need of electric control unit Rugged brass construction for use in corrosive environments and seawater applications
